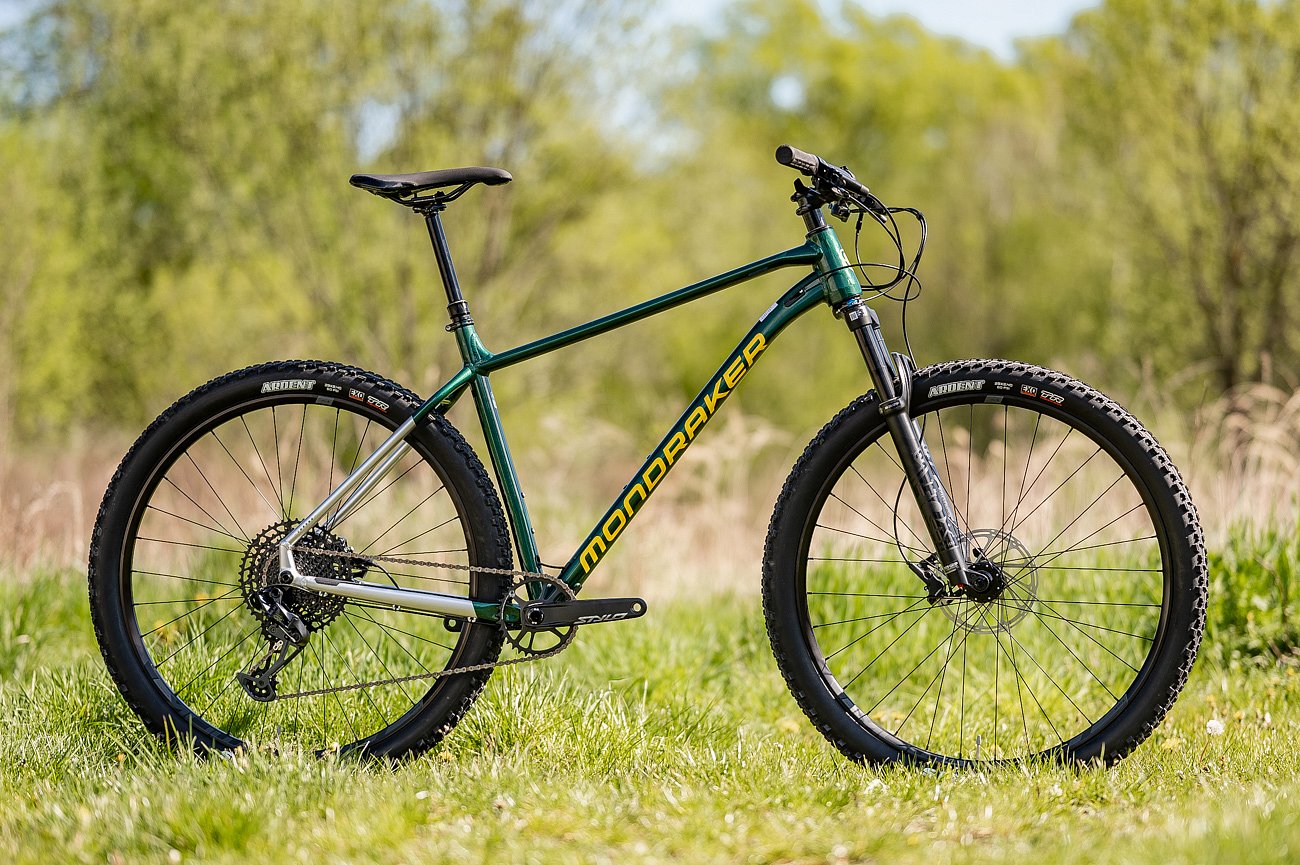

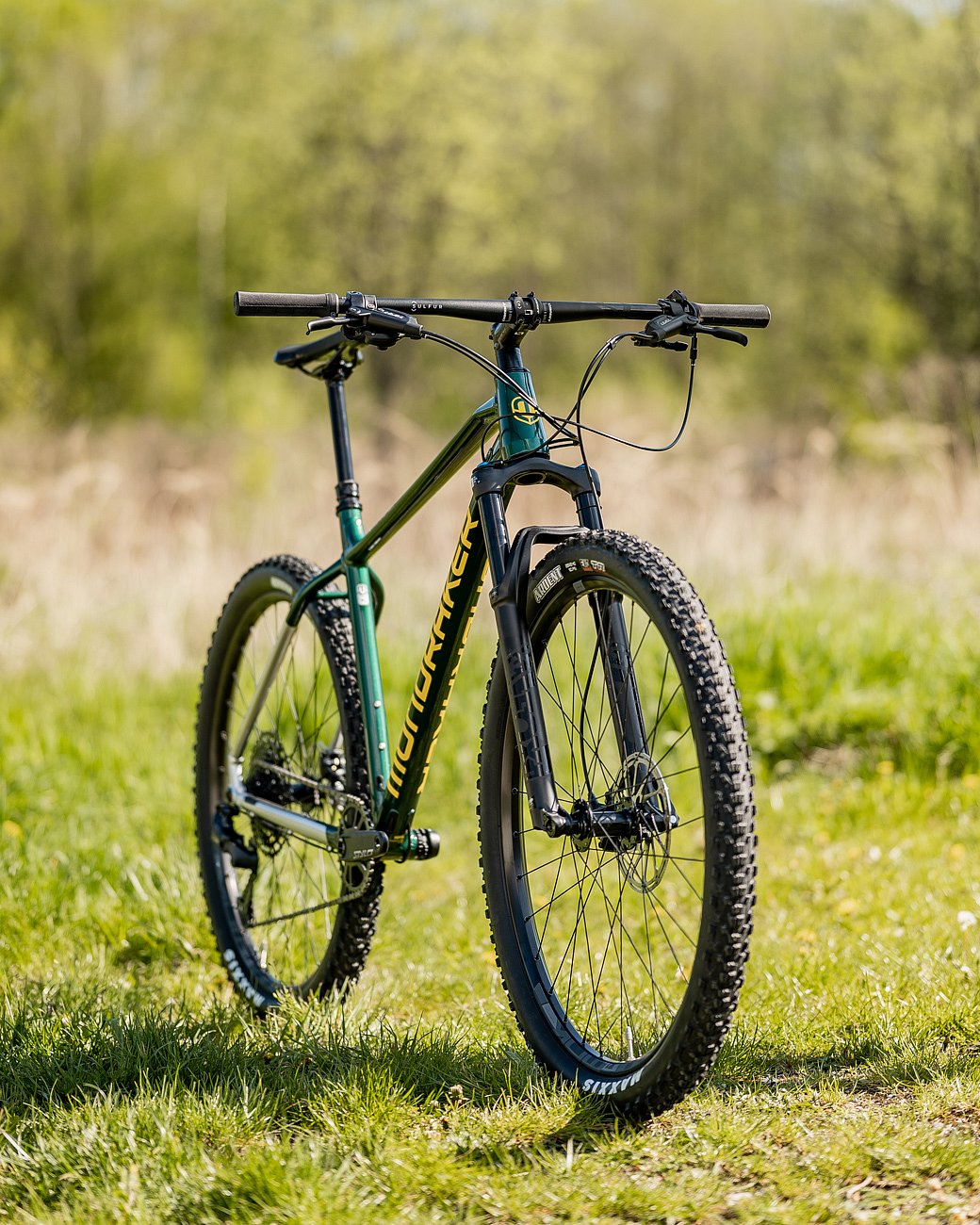

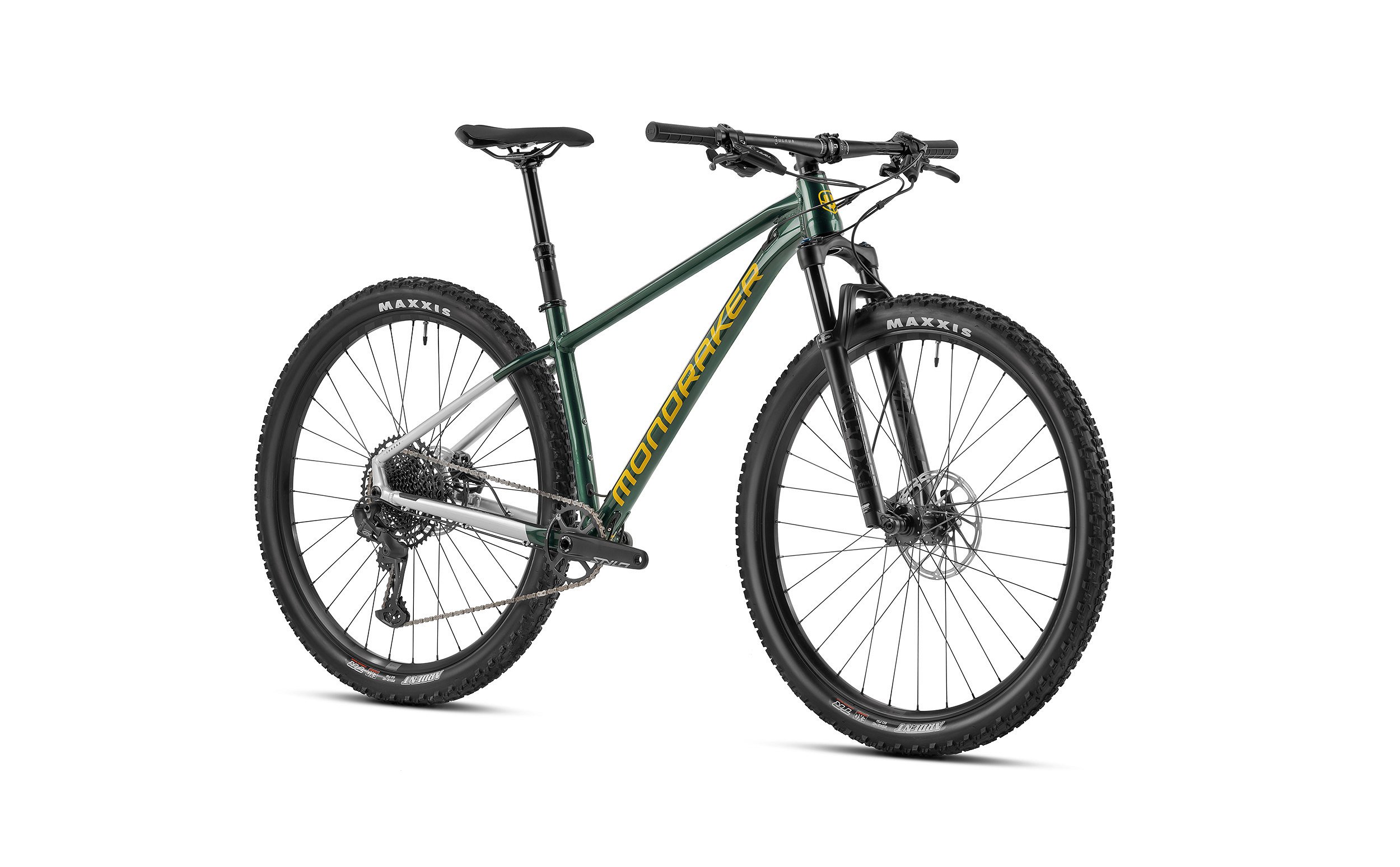

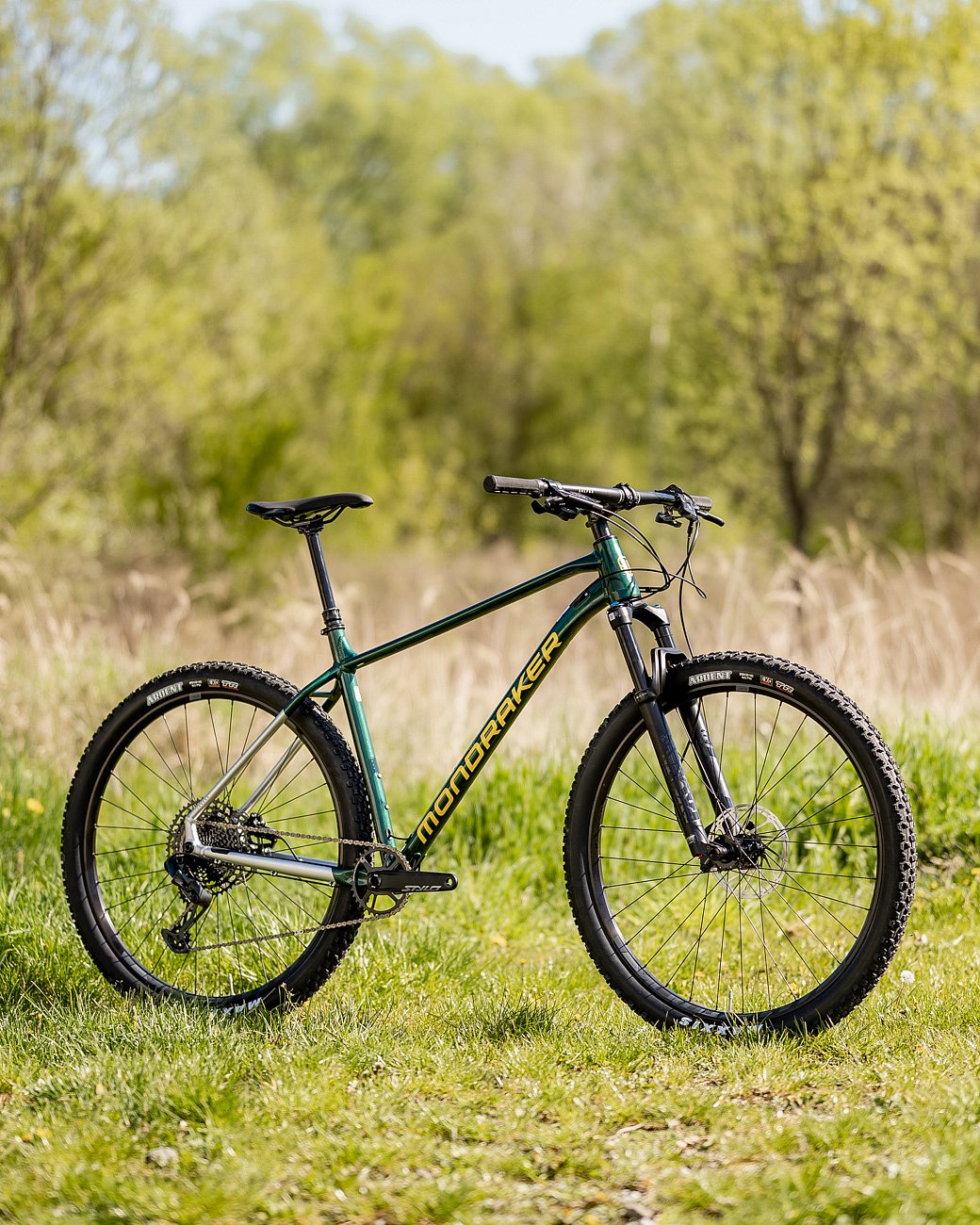

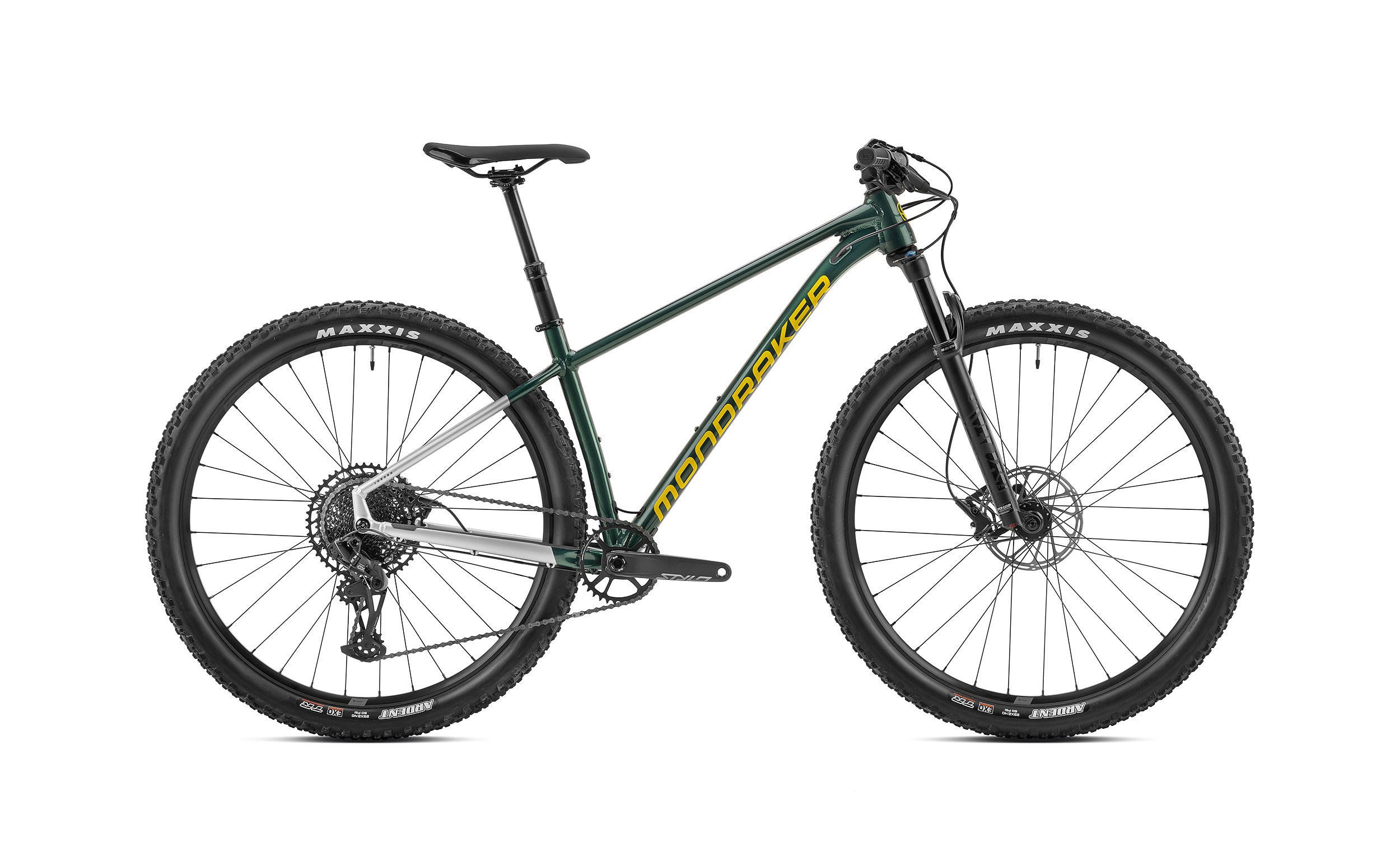

MONDRAKER Chrono DC R 2023, british racing green/yellow

Parametre

Výrobca MONDRAKER
Modelový rok 2023
Určenie pánske/unisex
Kategória XC/CROSS-COUNTRY
Farba british racing green/yellow
Materiál rámu hliník
Rám Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Typ vidlice vzduchová
Predný zdvih (mm) 120

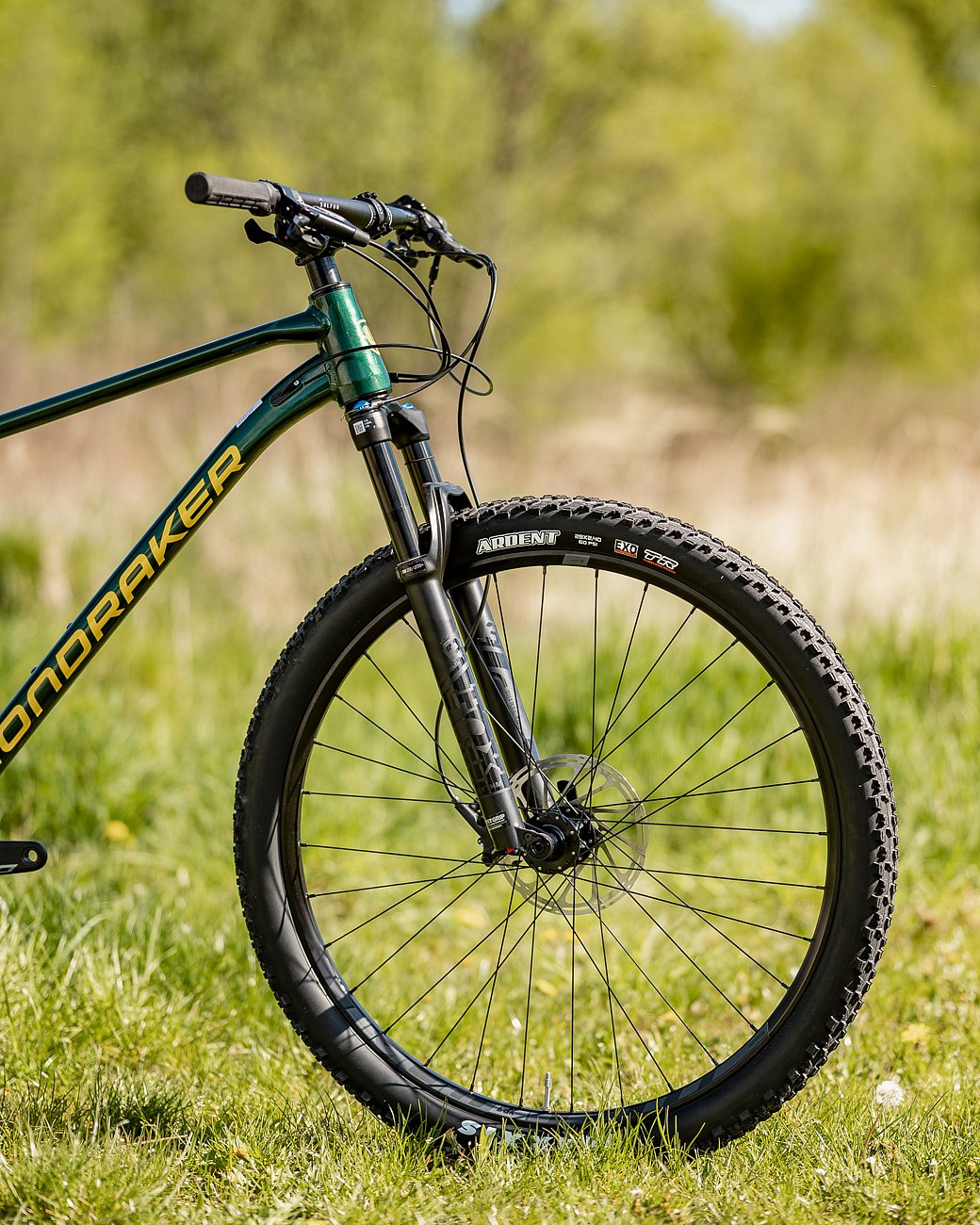

Vidlica Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload
Veľkosť kolies 29"

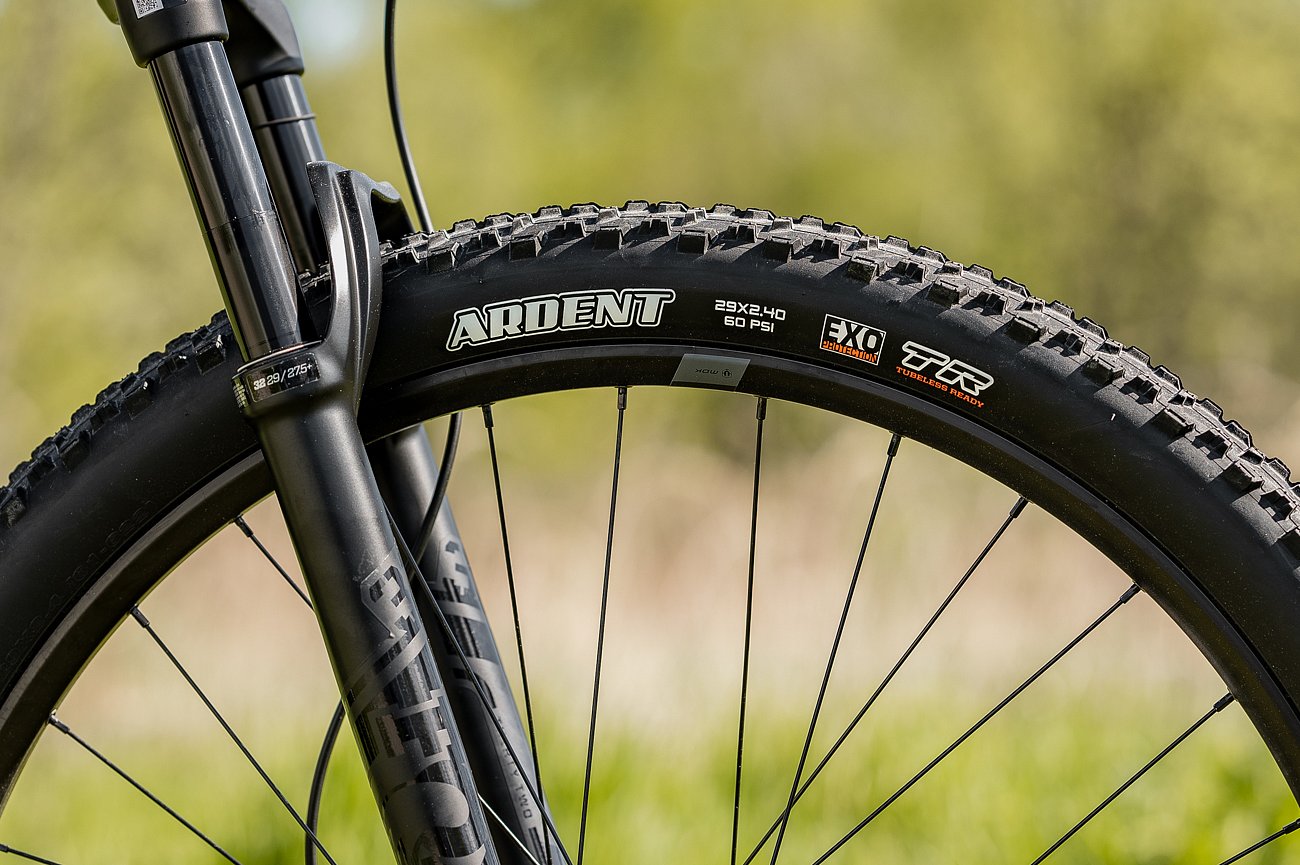

Predný plášť Maxxis Ardent 29x2,40", 60TPI, folding bead
Zadný plášť Maxxis Ardent 29x2,40", 60TPI, folding bead
Predný náboj Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Zadný náboj Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
Ráfik MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Počet rýchlostí 12
Počet prevodníkov 1
Počet pastorkov 12
Reťaz Sram SX Eagle
Radenie Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Kľuky Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Prevodníky 34T, steel, X-Sync 2
Zadné ozubenie Sram PG-1210, 11-50T, 12s

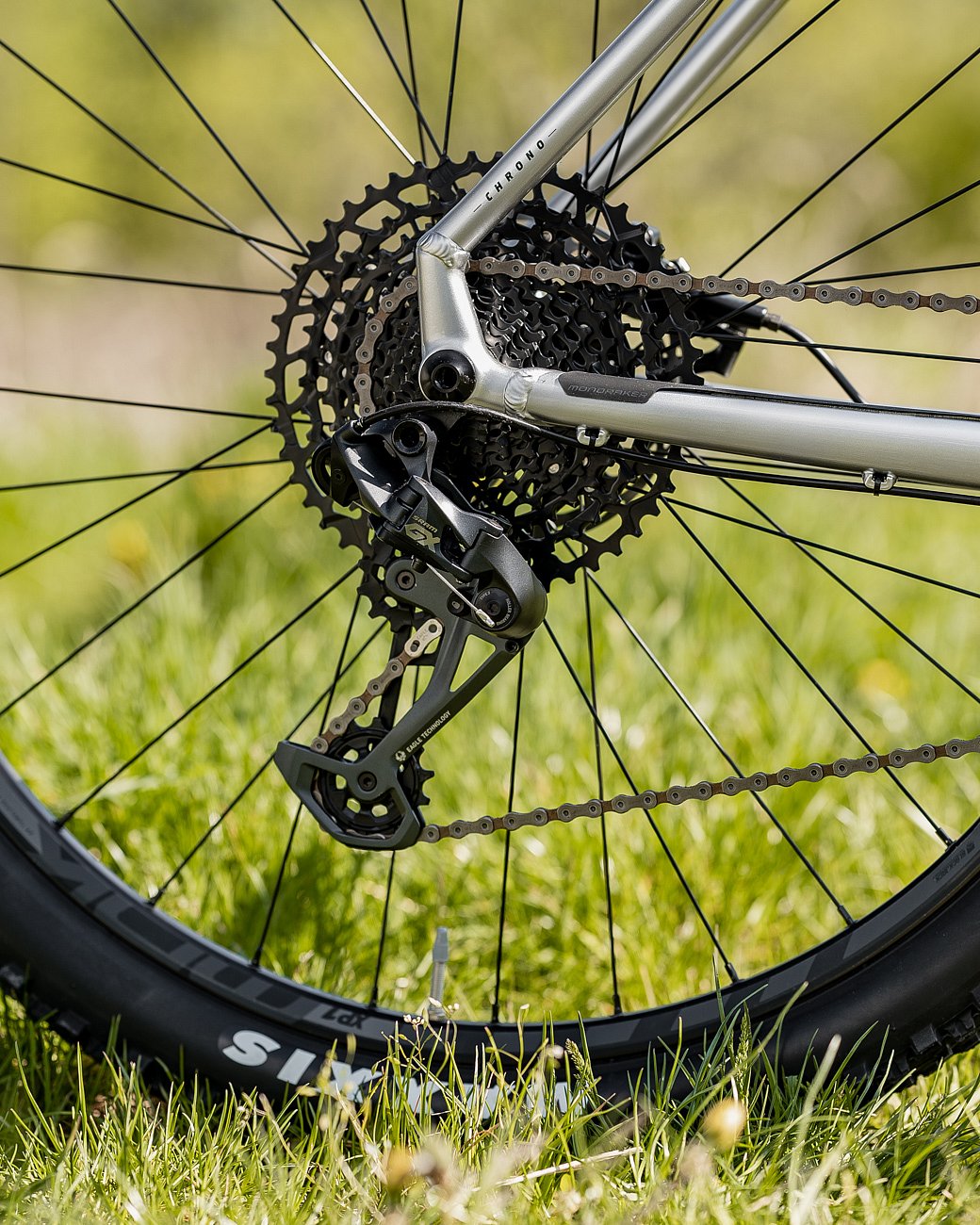

Prehadzovač Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1

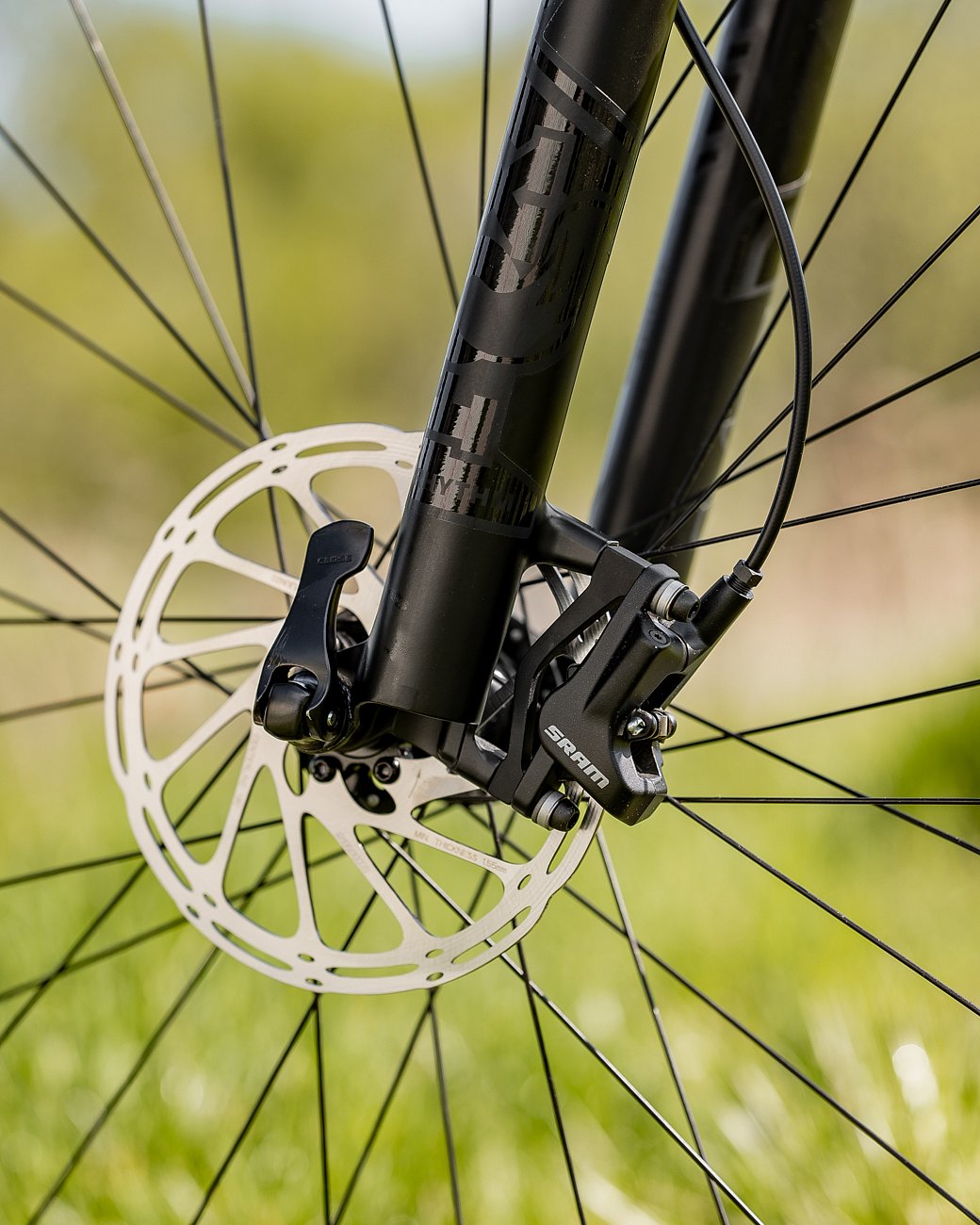

Brzdy Sram Level, 2 piece caliper
Brzdové páky Sram Level, tooled reach adjust, lever pivot bushings
Predný kotúč Sram Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

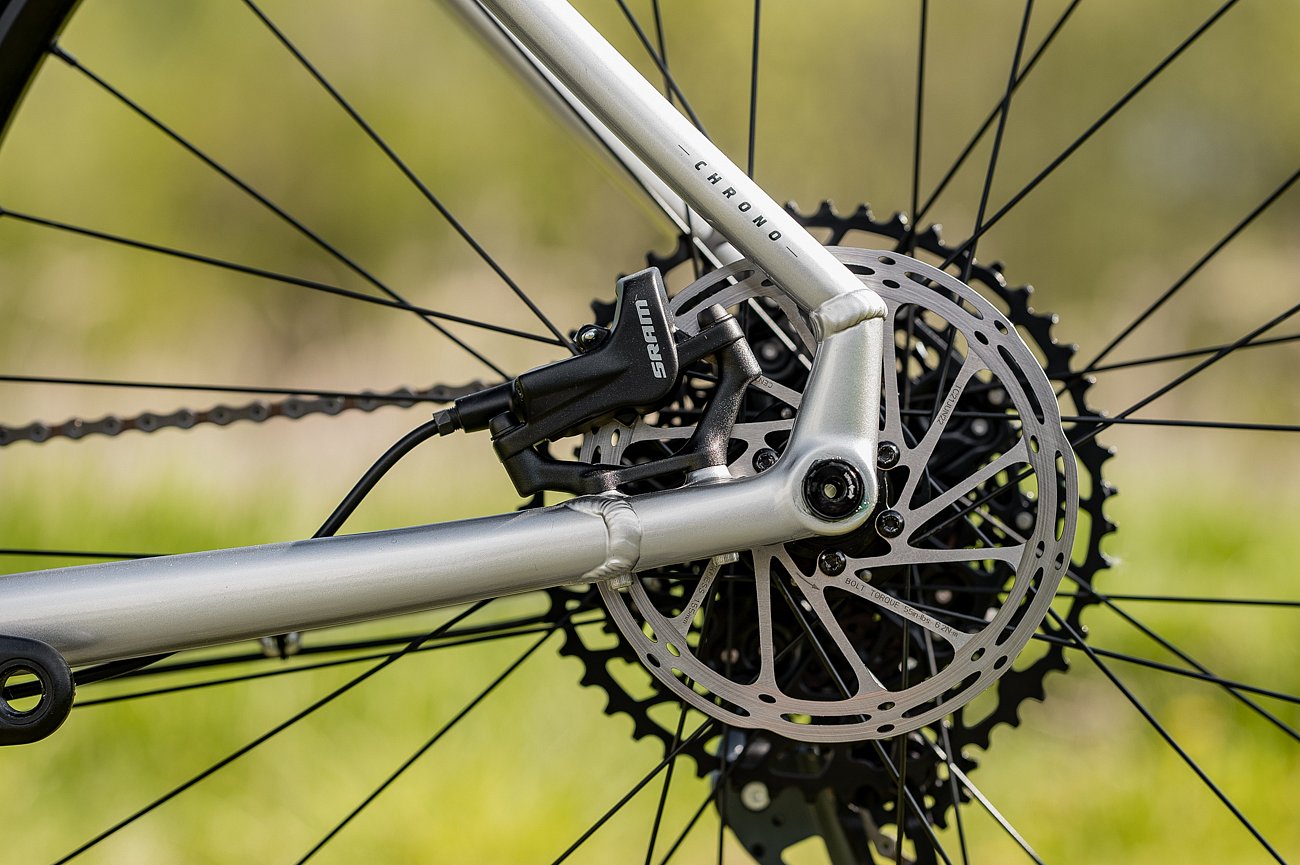

Zadný kotúč Sram Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads
Predstavec Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm

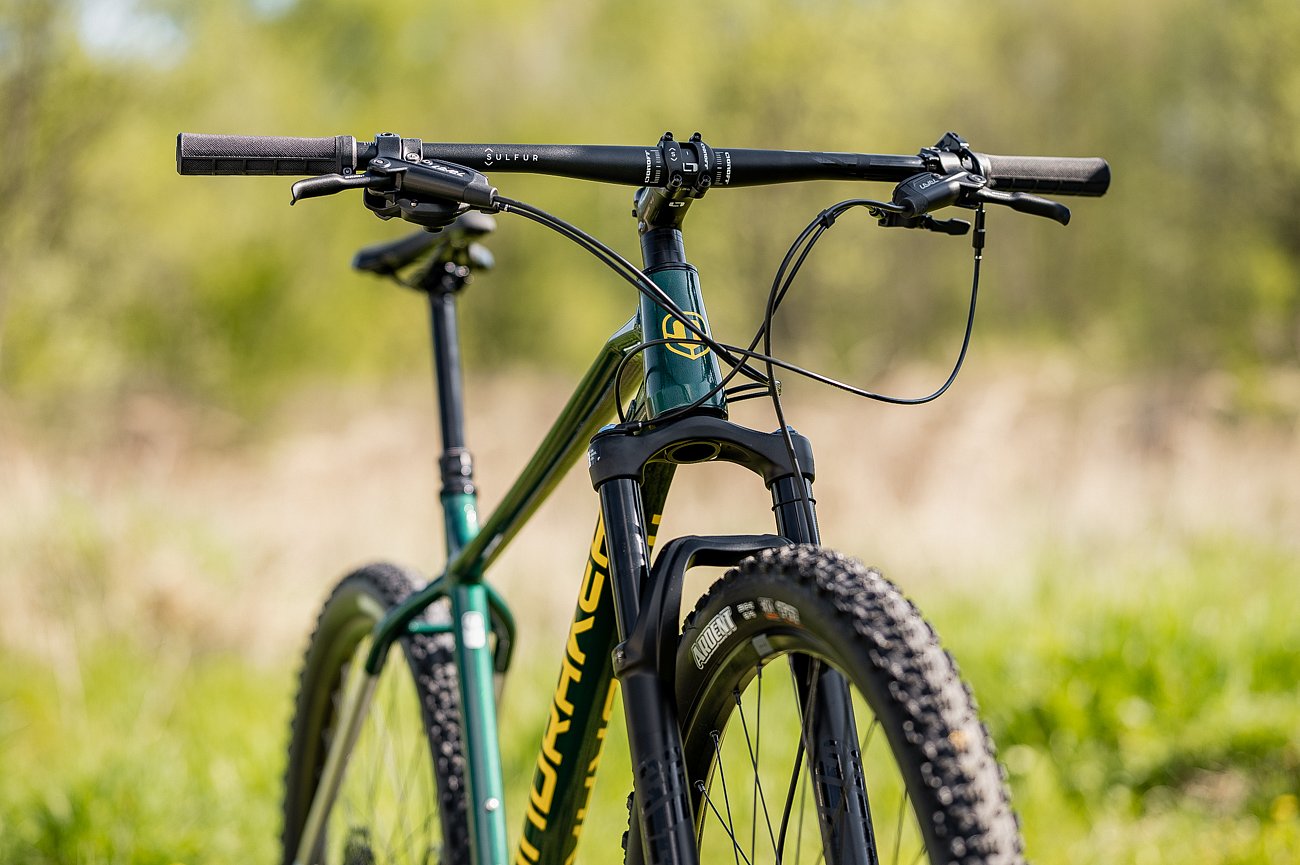

Riadidlá Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Rukoväte Onoff Twin, 1lock-on, 135mm
Hlavové zloženie Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Stredové zloženie Sram DUB BSA, sealed bearings, 73mm
Sedlovka Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm
Sedlo Mondraker XC Series, steel rail
