Mondraker vo svojej modelovej rade ,,CHRONO" ponúka najlepší kompromis v pomere cena/výkon/váha u 29" hardtailových bikoch. Mondraker Chrono 2020 s váhou ,,len" 12,4 kg.
  • Výrobca MONDRAKER
  • Modelový rok 2020
  • Určenie pánske/unisex
  • Kategória XC/CROSS-COUNTRY
  • Farba fox orange/black/light green
  • Rám Chrono 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
  • Vidlica RockShox 30 Silver TK 29, 100mm, Solo Air, tapered steerer tube, 9x135mm axle, 30mm steel stanchions, offset 46mm. Settings: 2 pos remote compression (open/lock), rebound, air preload
  • Plášte Maxxis Ikon 29x2.20, 60TPI, Wire bead
  • Predný náboj MDK DC20LW 9x135mm, cup & cone ball bearings, IS 6 bolts
  • Zadný náboj MDK DHT 12x148mm, sealed bearings, IS 6 bolts
  • Ráfiky MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
  • Počet rýchlostí 12
  • Reťaz SRAM SX EAGLE 12s
  • Radenie Sram Trigger SX Eagle, 12s, X-Actuation 1:1
  • Kľuky Sram SX Eagle 12s, Boost, DUB BSA 73mm, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
  • Zadné ozubenie Sram PG-1210 11-50 12s
  • Prehadzovač Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
  • Brzdy Shimano MT201
  • Brzdové páky Shimano MT201, tooled reach adjust
  • Predný kotúč 160 mm
  • Zadný kotúč 160 mm
  • Predstavec OnOff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm
  • Riadidlá OnOff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
  • Rukoväte Onoff Twin, 1lock-on, 135mm
  • Hlavové zloženie Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
  • Stredové zloženie Sram DUB BSA, sealed bearings, 73mm
  • Sedlovka OnOff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
  • Sedlo Mondraker XC Series Chrono Carbon design

https://kubicasport.eu/files/2019/12/1576256418_chrono-20190709171737-geometry-1400-1064.jpg

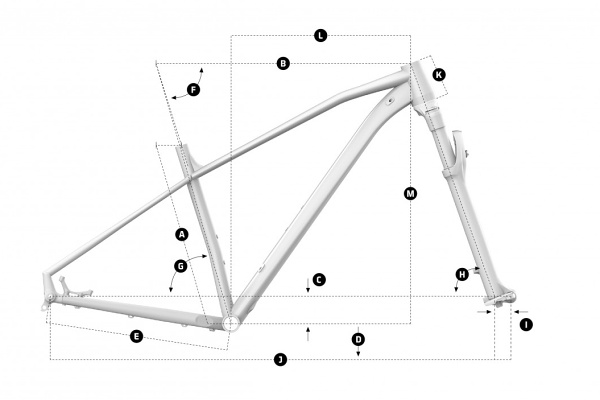

Frame Size S M L XL
A Seat Tube Lenght 395 mm 430 mm 470 mm 520 mm
B Top Tube Lenght 590 mm 610 mm 630 mm 650 mm
C Bottom Bracket Drop -65 mm -65 mm -65 mm -65 mm
D Bottom Bracket Height 305 mm 305 mm 305 mm 305 mm
E Chainstay Lenght 435 mm 435 mm 435 mm 435 mm
F Seat Tube Angle, Actual 72,5° 72,5° 72,5° 72,5°
G Seat Tube Angle, Effective 73,5° 73,5° 73,5° 73,5°
H Head Tube Angle 70° 70° 70° 70°
I Fork Offset 46 mm 46 mm 46 mm 46 mm
J Wheelbase 1087 mm 1107 mm 1127 mm 1148 mm
K Head Tube Length 100 mm 100 mm 110 mm 125 mm
L Reach 406 mm 426 mm 444 mm 460 mm
M Stack 618 mm 618 mm 628 mm 642 mm
https://kubicasport.eu/files/2019/12/1576250688_mondraker-size-chart.png
